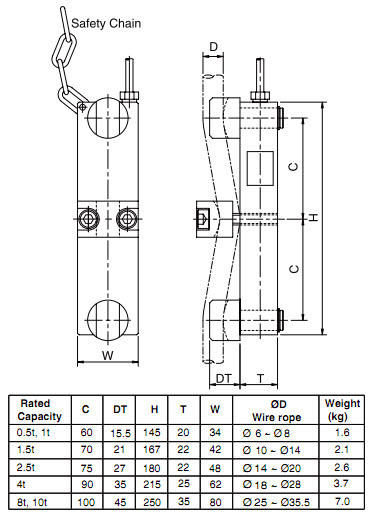

MODEL

CCDM

Rated capacity (R.C.)

500kg, 1, 1.5, 2.5, 4, 8, 10t/hope

Rated output(R.O.)

Approx 1.0mV/V

Non-linearity

≤1.0% R.O.

Hysteresis

≤1.0% R.O.

Non-repeatability

≤1.0% R.O.

Creep error

≤1.0% in 20min.

Zero balance

≤1% R.O.

Compensated temperature range

-10 ~ 70°C

Operating temperature range

-20 ~ 80°C

Temp. effect on rated output

≤0.05% LOAD/10°C

Temp. effect on zero balance

≤0.05% R.O./10°C

Terminal input resistance

400 Ohms ±10 Ohms

Terminal output resistance

350 Ohms ±5 Ohms

Insulation resistance (Min.)

2000 MOhms at 50V DC

Excitation voltage

10V(Recommended), 15V(Max.)

Electrial connection

Ø7mmx6m(22AWG x 4Core Shielded)

Protection class

meets IP 64

Safe overload

200% R.C

Ultimate overload

400% R.C
